55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Подробная информация о продукте:
| Место происхождения: | Гуандун, Китай |
| Фирменное наименование: | JINTONG |
| Номер модели: | JTT-550R |
Оплата и доставка Условия:
| Количество мин заказа: | 1 кусок |
|---|---|
| Цена: | $19,000-21,000 / piece |
|
Подробная информация |
|||
| Пластифицирующая способность: | 150 г/с | Высота прессформы: | 160 - 300 мм |
|---|---|---|---|
| Номер выталкивателя: | 2 | Эктотор -инсульт: | 60 мм |
| Эжектор силы: | kN 1,8 | body{background-color:#FFFFFF} 非法阻断155 window.onload = function () { docu: | 170 см3 |
| Уровень впрыска: | 113 г/с | Вес впрыска: | 141 г |
| Винт скорость: | 0 - 215 оборотов в минуту | Диаметр винта: | 40 мм |
| Винт L/D Соотношение: | 22 | Расстояние между прутками: | 510 mm |
| Масса: | 2400 кг | Открытый ход: | 540 мм |
| Власть: | 12,8 KW | ||
| Выделить: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Характер продукции
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description

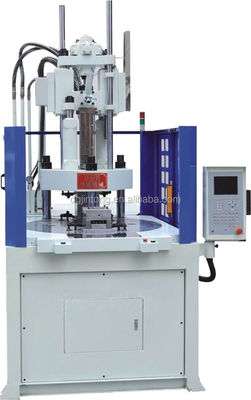

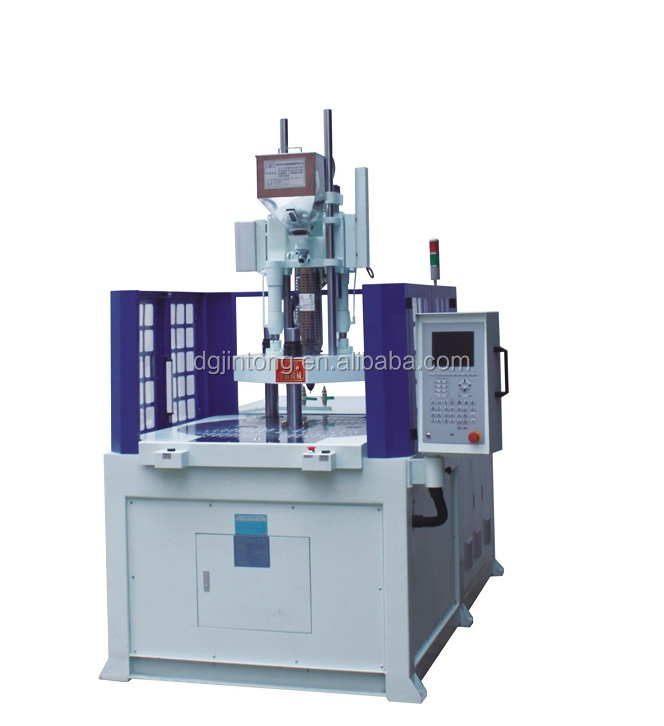

Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications

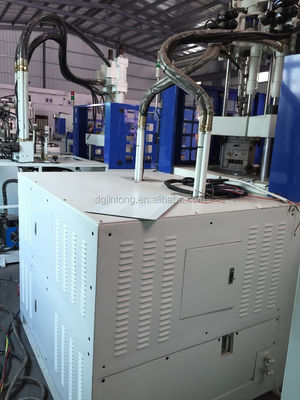

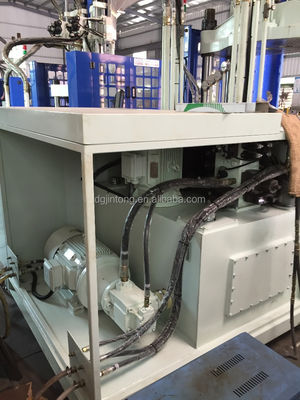

Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
